Compliant and Non-compliant Applications in Windows, Mac and Linux
Compliance
When using Keyman with a given Keyman keyboard, it should produce the same output regardless of what application is in use. For example, if using Microsoft Word, Apple Pages or Google Docs running in Google Chrome, the same keystrokes should produce the same characters. However, this is only possible if the application is fully compliant, meaning that the application fully implements all the APIs that Keyman needs to interact with it.
If an application is non-compliant, then Keyman attempts to work around any limitations, but typing cannot be supported in the same way as for compliant applications.
Background
Typing with Keyman involves the interaction of three different software components:
- the operating system (i.e. Windows, macOS or Linux) that generates the key event in response to the user's typing
- the application, such as a text editor, that is active while the user is typing
- Keyman, which transforms the key event into different characters according to the rules established by the active Keyman keyboard
For Keyman to do its job, it must receive key events from the operating system, but it must also have a means of communicating with the active application (via the operating system). Keyman communicates with the current application to:
- read the text at the current location
- insert or replace text
To be fully compliant, an application must respond accurately to these requests whenever the application is active.
An example of a compliant application

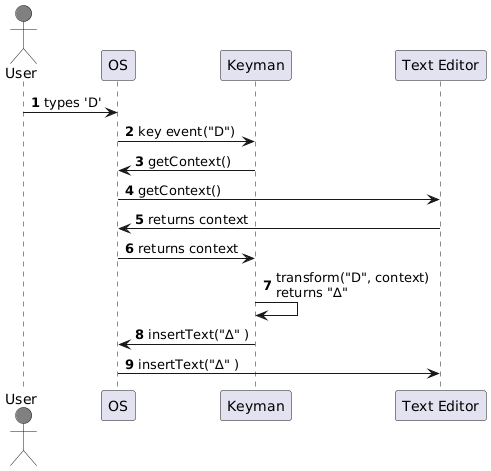

The following sequence diagram illustrates what happens when the user types a key while Keyman is running.
step 1 The user types 'D'
step 2 The operating system notifies Keyman of the key event
steps 3 to 6 Before processing the key, Keyman calls the OS to get the context (the text immediately preceeding the current location). The OS passes the request on to the application and then returns the result it receives to Keyman.
step 7 Using the key event, the context and the rules of the active Keyman keyboard, Keyman determines the appropriate output, "∆"
step 8 and 9 Keyman calls the OS to insert "∆", and the OS calls the application to insert the text at the current location
The importance of context
If Keyman keyboards were limited to simply mapping one key to one character, context would not be important. For example, typing 'a' produces 'α' and typing 'b' produces 'β'.
However, many keyboards implement complex rules that depend on a sequence of multiple characters. With these rules, output of a key depends on the key typed and also the context.
For example, suppose that the user just typed the apostrophe in the following text:
I always order the club sandwich at our corner caf'
If the active Keyman keyboard is EuroLatin(SIL), and the user now types the letter 'e', Keyman will not simply output the character 'e'. Instead, it will see that the previous character typed was an apostrophe, and it will combine this with the 'e' and output an 'é'. Keyman will insert this character in place of the existing apostrophe to produce the following text:
I always order the club sandwich at our corner café
Without knowing the context, Keyman is unable to execute rules like this.
Non-compliant behavior
An application is considered non-compliant when it does not fully support the APIs that Keyman needs to communicate with it. Without compliant APIs Keyman may be unable to:
- get the current location where the user is typing
- get the current selection
- read the context
- insert text
- delete or replace text
Working around non-compliant behavior
Applications that are not compliant can still be used with Keyman, and in many cases Keyman may function as expected. In some situations, Keyman's attempt to work around the limitations of a non-compliant application will result in inconsistent behavior.
Inability to insert text
If the API to insert text into the application is not supported using an API, Keyman can work around this by generating individual key events to insert the text.
Inability to replace text
If the API to replace or delete text is not supported, then Keyman generates backspace key events which are consumed by the application.
This workaround can cause unexpected output when the application deletes more text than Keyman intended. If Keyman sends two backspaces to delete two codepoints, the application may delete an entire composed character consisting of two codepoints for the first backspace and then delete an additional character that should have remained untouched for the second backspace.
Inability to read context
Keyman works around an application that is unable to read the context by keeping a small buffer of its recent output. Keyman can use the new key event combined with this buffer to determine the correct output.
The buffer maintained by Keyman will become stale if the user does anything to invalidate the context, such as:
- using the mouse to move the insertion point
- using a command key to move the insertion point
- using arrow keys to change the location
- pressing the home, end, page up or page down keys
- using a menu shortcut or hotkey to insert or remove text or move to a different location or document
- switching to another application
Keyman watches for all these context-changing events to determine whether its buffered context is still valid. If it detects one of these context-changing events, then it discards its buffer and assumes an empty context. This has the effect of Keyman appearing to forget where it was because it has no knowledge of its location in the document.
It is probably not a common occurrence, but if the context is invalidated while the user is in the middle of typing a sequence of keys, then Keyman will not recognize the sequence, and it will need to be retyped.
Compliance on the Mac
On macOS, there are three APIs that Keyman can call to support typing in the client application. These are as follows:
(NSRange) selectedRange
This API returns a range that represents the location and length of the current selection. When no text is selected, it returns a length of zero.
*`(NSAttributedString ) attributedSubstringFromRange:(NSRange) range`**
This API returns the text found at the location and length of the specified range. The context is found by calling this API and passing the location returned from selectedRange.
insertText:(id) string replacementRange:(NSRange) replacementRange
This API inserts a string of text at the specified location, replacing the text over the specified length.

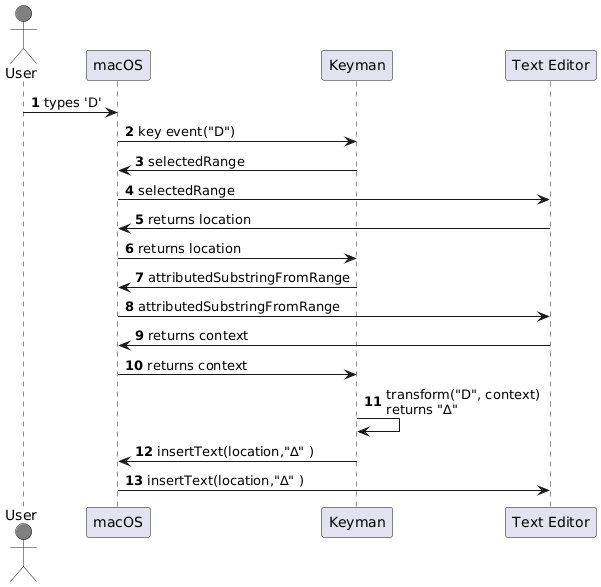

The following sequence diagram shows how these APIs are used when a user types a key.
step 1 The user types 'D'
step 2 macOS notifies Keyman of the key event
steps 3 to 6 Before processing the key, Keyman calls macOS to get the current location, and macOS passes the request to the application
steps 7 to 10 Keyman calls macOS to get the context using the current location, and macOS passes the request on to the application and then returns the result it receives to Keyman.
step 11 Using the key event, the context and the rules of the active Keyman keyboard, Keyman determines the appropriate output, "∆"
step 12 and 13 Keyman calls macOS to insert "∆" at the current location, and macOS passes the request to the application
Non-compliance on the Mac
With macOS, setting the context and inserting or replacing text are dependent on knowing the current location. So if selectedRange does not return a valid location or length, then Keyman does not know where to read the context from or where to insert its output.
Non-compliant applications usually return zero or some other constant regardless of where the user is typing, and Keyman can detect this by checking the location returned before and after the first key event.
Other non-compliant applications may return the correct result for selectedRange but then return nil for attributedSubstringFromRange. This is also easy for Keyman to detect by checking a result after text has been inserted.
