Package Editor


The Package Editor allows you to edit a .kps package source file, which will be compiled into a .kmp package file. These files contain a set of keyboards, documentation, fonts, and other related files, which make distribution and installation of a keyboard in Keyman simple.

Files tab

Package Editor - Files tab

Use the Add... button to select the files to be included in the package, such as .kmx and .js keyboard files, documentation, and related fonts; but you can include any type of file here as well.

If you add another .kmp package file, it will also be installed when this package is installed, but will be managed separately and uninstalled separately.

Keyboards tab

Package Editor - Keyboards tab

The Keyboards tab shows you some status information of keyboards you've added to the package. There are also optional font dropdowns and a required "Languages" section. The fields on the tab are:

  • Description
    The keyboard name (&name system store).
  • Files
    This shows the associated keyboard files (.kmx and .js files)
  • Version
    The keyboard version (&keyboardversion system store).
  • Is right-to-left
    Currently, this is only applicable to Android, iOS and Web (that is, .js format) keyboards. This reflects the checkbox in the Details tab of the Keyboard editor.

Note

Is right-to-left will only be true if the following occur:

  • "Keyboard is right-to-left" is checked in the Keyboard editor
  • The compiled .js keyboard is added to the package
  • Keyboard font
    When font files are added to the package, this dropdown tells the Keyman apps which font to use when rendering the On Screen Keyboard touch keyboard. Optional.
  • Display font
    When font files are added to the package, this dropdown tells the Keyman apps for iOS and Android which font to use in edit fields. It only applies within the Keyman app and apps that support this functionality. Optional.
  • Web fonts
    It is possible now to specify additional font filenames that will be made available to KeymanWeb, for example, providing fonts in WOFF or WOFF2 formats. More on web fonts
  • Languages
    Because the language information in the .kmn source is deprecated, the "Languages" section is required. Each language listed here is a BCP 47 language tag. Use the Add button to bring up the "Select BCP 47 Tag" dialog. When Keyman installs the keyboard package, it will associate the keyboard with the language(s) you select here. Required.

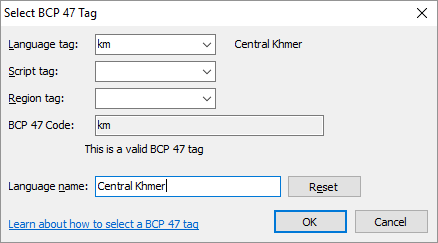

    Package Editor - Select BCP 47 Tag dialog

  • Examples
    Examples allow you to provide short keystroke sequences to type sample text with your keyboard. This can be the easiest way for a new user to start using your keyboard, and is particularly helpful when your keyboard makes use of keying sequences that may not be immediately obvious.

    As the keying examples may vary by language, you should include the BCP 47 tag for each example, plus a short description (in English) of what the text is about.

    The key sequence must list each key combination, separated by space. The actual text for each key is reasonably arbitrary, to allow you to provide examples for touch keyboards as well as desktop keyboards. There are three special kinds of key strings:

    • Modifier keys may be specified with the + character, e.g. shift+e or right-alt+k. Use lower case keys. The suggested standard modifiers are: shift, ctrl, alt, left-alt, right-alt, left-ctrl, right-ctrl, and option (mac).
    • The space key itself may be specified with space.
    • To avoid confusion with modifier keys, the + key can be specified with plus.

    For example, the key sequence x, j, m, Shift+e, r may be specified as x j m shift+e r or x j m E r.

    Package Editor - Edit Example dialog

Details tab

Package Editor - Details tab

Enter the name of the package into the Package Name field; this will be automatically filled from the name of the first keyboard you add to the package.

Select a HTML readme file if you have one to include in the package; this will be displayed before the package is installed as information about the package.

Version numbers should be in the form major.minor[.patch]. Patch is optional but is helpful for small bug fix releases. Each of the sections of the version should be an integer. Keyman Desktop does integer comparisons on the version number components, so, for example, version 2.04 is regarded as newer than version 2.1. Alphabetic or date formats should be avoided as the installer for the keyboard cannot determine which version is older reliably.

You can also tick the checkbox labelled "Package version follows keyboard version" to have the package version automatically track the keyboard version.

The Copyright indicates the overall copyright of the package and all its contents.

Fill in the individual or organisation who authored the package in the Author field, and a contact email address into the E-mail address field. These fields are optional.

A web site is encouraged and should be filled in the web site field, including the initial "http://" or "https://".

A package can optionally include a 140x250 JPEG or PNG image file to be shown during installation. This image file must be added to the Files list in step 1, then selected from the list here.

Related packages

If a keyboard package is intended to replace an existing keyboard, or if there are related packages, then the identifiers for these packages should be listed here.

There are two types of package relationships:

  • Deprecation: if the package replaces an existing package, ensure that you select the 'Deprecated' check box. This information will be used on the Keyman website, both to help users select the most recent version of a keyboard, and also to offer upgrades to new packages for existing users of the package.

  • Related: if the 'Deprecated' check box is not selected, then this the relationship information is used to provide links to the related packages on the Keyman website. For example, you may create two keyboards for the same language with different keying orders; then it would be appropriate to cross-reference them with this field.

Package Editor - Edit Related Packages dialog

Shortcuts tab

Package Editor - Shortcuts tab

You can optionally have the package create a Start Menu folder, and populate it with shortcuts to the files in the package, and optionally also a shortcut for uninstallation.

To add an entry, click New, and set the description, and choose a program or document to load.

An uninstall shortcut is no longer recommended; uninstall should be managed by the user in Keyman Configuration.

Source tab

Package Editor - Source tab

The source of the .kps file in XML format. All details from previous tabs can be seen in the Source tab, and changes in either the Source tab or the other tabs will be reflected immediately in the other.

Compile tab

Package Editor - Compile tab

The final step is building the package. You must save the package file before building, then choose Compile Package to build the package file. You can then test the package to verify that it will install correctly with the Install Package button.

Once you are satisfied with your package, you should consider submitting the keyboard to the Keyman Cloud Keyboards Repository.

Package Installers

As of Keyman Developer 17, bundled executable package installers for Keyman for Windows can be created using kmc, but cannot be created within the IDE.
