Keyboard Editor


The keyboard editor is the heart of Keyman Developer. This window allows you to edit all aspects of a keyboard layout, from the visual layout of the keyboard, to logic rules, to touch interactions, and more.

The editor is divided into multiple tabs. Initially, only three tabs will be visible: Details, Layout, and Build. A keyboard can have multiple source files, which are all managed within this one editor.

The following image shows the first tab of the editor, the Details tab, for a brand new keyboard, with those three initial tabs.

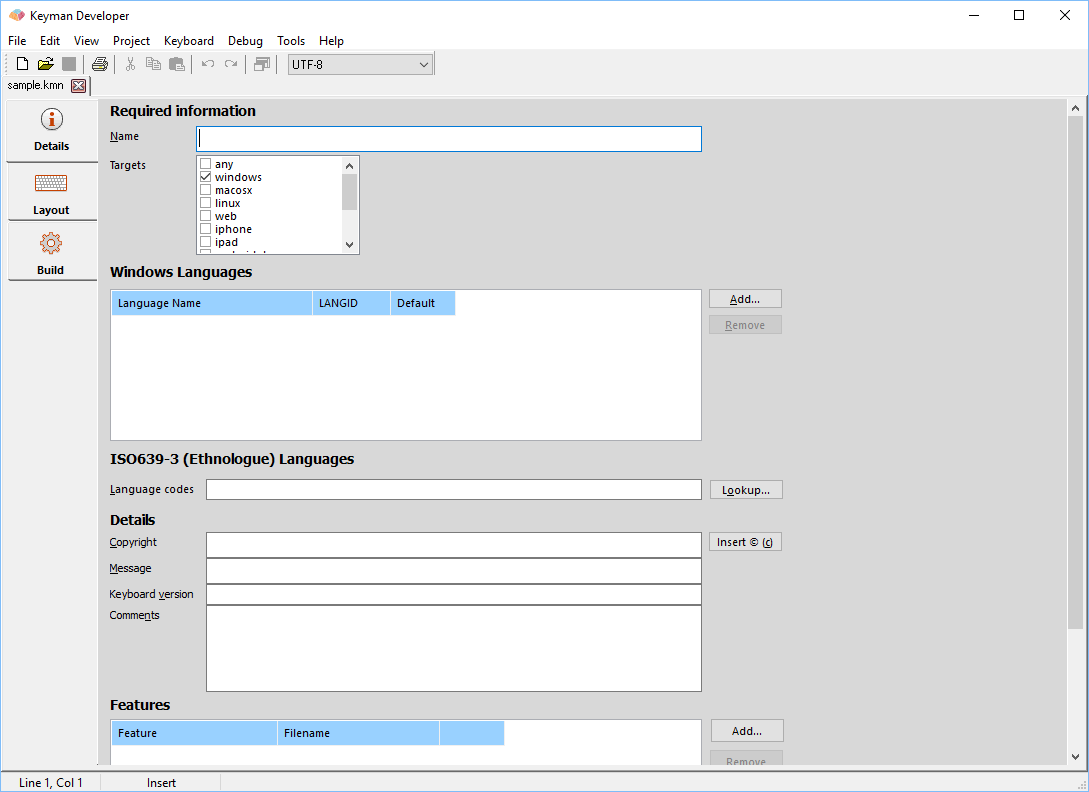

Keyboard Editor - New file, Details tab

Note

Users of earlier versions of Keyman Developer may initially have trouble finding tabs such as the Icon tab or the On-Screen tab, as they are not initially visible. The Features grid on the Details tab allows you to add these extra features into the keyboard.

Keyboard component files

A keyboard contains multiple source files. The following table lists the file types and which tabs are used to edit them. The filenames shown are defaults and can be modified, by editing the corresponding line in the source file (and renaming the file). However, where possible the default names should be used.

File type Tabs Feature Store name Description
file.kmn Details, Layout The primary keyboard source file. Required.
file.kvks On-Screen Desktop On-Screen Keyboard &visualkeyboard The visual presentation of the keyboard for desktop computers.
file.ico, file.bmp Icon Icon &bitmap An icon that represents the keyboard in the user interface on desktop computers.
file.keyman-touch-layout Touch Layout Touch-Optimised Keyboard &layoutfile The touch layout visual description file
file-code.js Embedded JS Embedded Javascript &kmw_embedjs Additional Javascript code for IMX functionality
file.css Embedded CSS Embedded CSS &kmw_embedcss Additional CSS stylesheet for custom touch and web layout styling
file-help.htm Web Help Web Help &kmw_helpfile HTML file that replaces the On Screen Keyboard on desktop web layouts
file-codes.txt Include Codes Include Codes &includecodes Code dictionary for use with named constants

Three tabs include both visual and code editors: the Layout, Touch Layout and JSON Metadata tabs. Changes to one view will be immediately reflected in the other view. The code in the Layout tab is important because that reflects both the Details and the Layout tab.

Details tab

Keyboard Editor - Details tab

The Details tab grows as you add more options to a keyboard. The fields here are:

Name
The name of the keyboard, corresponding to the &name store.
Targets
The intended target devices and operating systems, corresponding to the &targets store. Changing the targets will hide or show parts of the Details and Compile tabs. If no targets are selected, Keyman Developer will treat the keyboard as a Windows-only keyboard, for backward compatibility reasons.
Copyright
Enter the details of the copyright owner for the keyboard. &copyright store.
Message
Enter a message that will be shown at install time for the keyboard (on Windows, macOS). &message store.
Keyboard is right-to-left
Check this box to indicate that the keyboard is a right-to-left keyboard, for web and touch layouts. &kmw_rtl store.
Web Help Text
A single line of text, with basic HTML allowed, shown at the bottom of the desktop web On Screen Keyboard. &kmw_helptext store.
Keyboard version
The version of the keyboard. Read the reference documentation for &keyboardversion store to understand the legal values for this field. This is not the same as the &version store, which controls the Keyman (and Keyman Developer) version for which a keyboard is designed.
Comments
This field corresponds to the first lines of comments in the keyboard source, and is visible only to the keyboard designer.
Features
The Features grid controls which additional file components are included in the keyboard, as listed in the Component Files section above. Each of the features relates to a system store. Adding a feature will add an extra tab to the editor, and add the corresponding store to the keyboard source. Removing a feature will not delete the component file, but will just remove the store from the keyboard source.

Layout tab

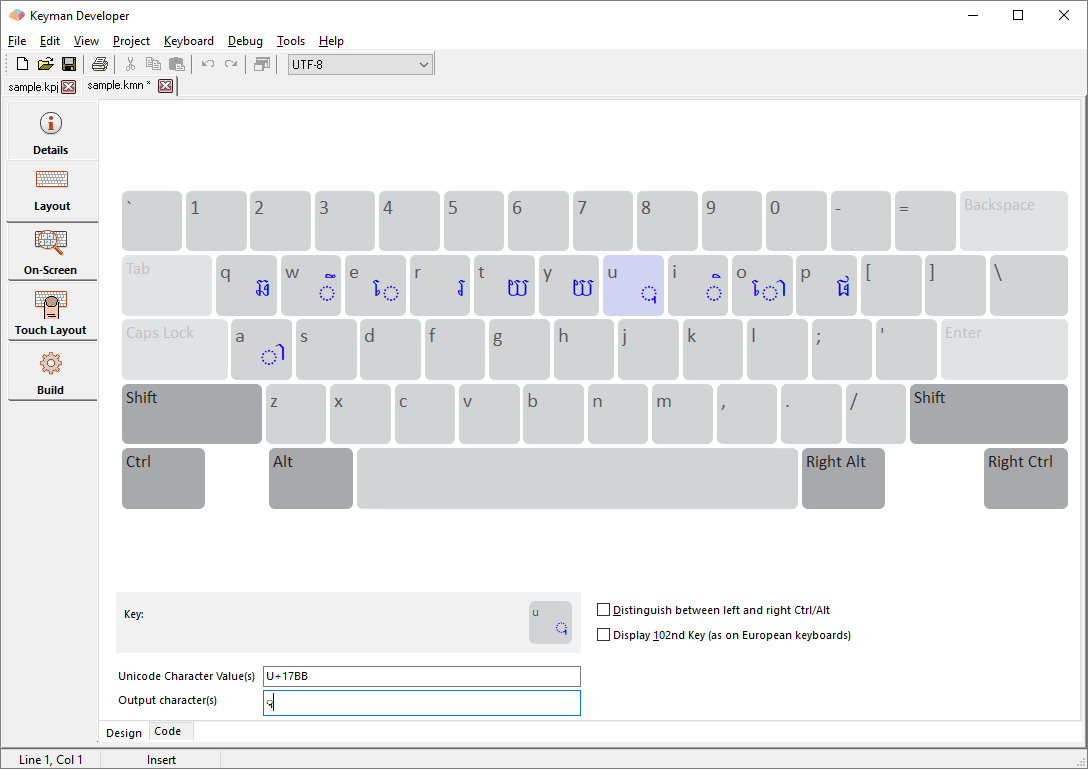

Keyboard Editor - Layout tab, Design view

The Layout tab gives you a simple interface to quickly create a keyboard using a visual representation of a desktop/laptop computer keyboard. You can drag and drop characters from the character map to create keyboard layouts. You cannot access most of Keyman's more powerful features from the Layout Design view, but it will be useful to get you started on your design.

Each key can have zero or more characters assigned to it. Each key can be assigned a different set of characters for each shift state. You can change the shift state by clicking on the Shift, Ctrl, and Alt keys.

There are two ways to assign characters to the keys:

  • Click on a key, and then type the character's code into the Unicode Character Value(s) field, or the type/paste the character itself into the Output character(s) field.
  • Select the character from the Character Map and drag and drop it onto the appropriate key. This will set the key to output that character.

Hint

To add the character to a key with existing characters, hold Ctrl while dropping it onto the key.

Note

Any key that does not have a character assigned to it will output what the selected Windows layout specifies.

Distinguish between left and right Ctrl/Alt
A Keyman keyboard can treat left and right Ctrl and Alt identically, or it can distinguish between them. The Design view allows one or the other mode (in Code view, you can use both interchangeably).
Display 102nd Key (as on European keyboards)
European keyboards have one extra key that is not on US keyboards. This key is positioned to the right of the left shift key. Some other keyboards have additional keys; these are not shown on the layout designer. If you have a European layout selected as your Windows layout, the 102nd key will always be visible in the designer. When a European layout is selected as your Windows layout, the shape of the Enter key will also change to take two rows, and the backslash key will move down one row, but not otherwise change in behaviour.

You can press and release Ctrl to select another key on the keyboard using your keyboard.

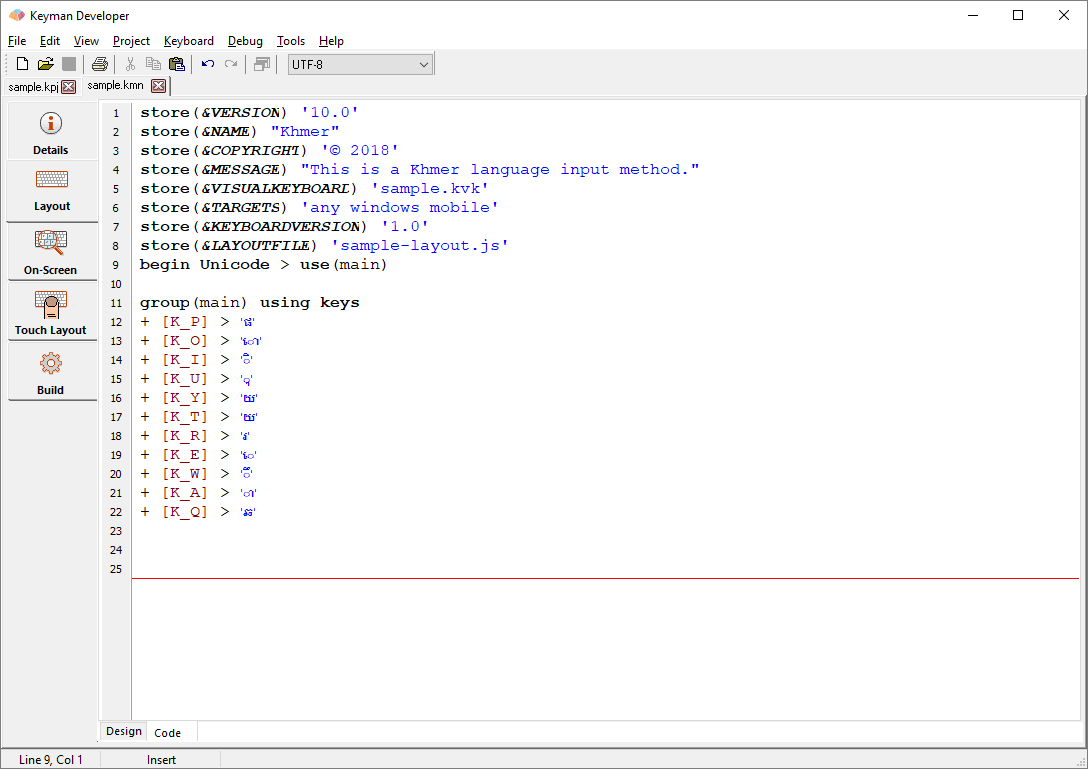

Keyboard Editor - Layout tab, Code view

The Code view shows the source code of the keyboard file. This is where all the information in the Details and Layout tab is stored, and additional logic and complex keyboard layouts will be edited entirely in the Code view.

See the Editor topic for more information on how to use the editor shown within this view.

On-Screen tab

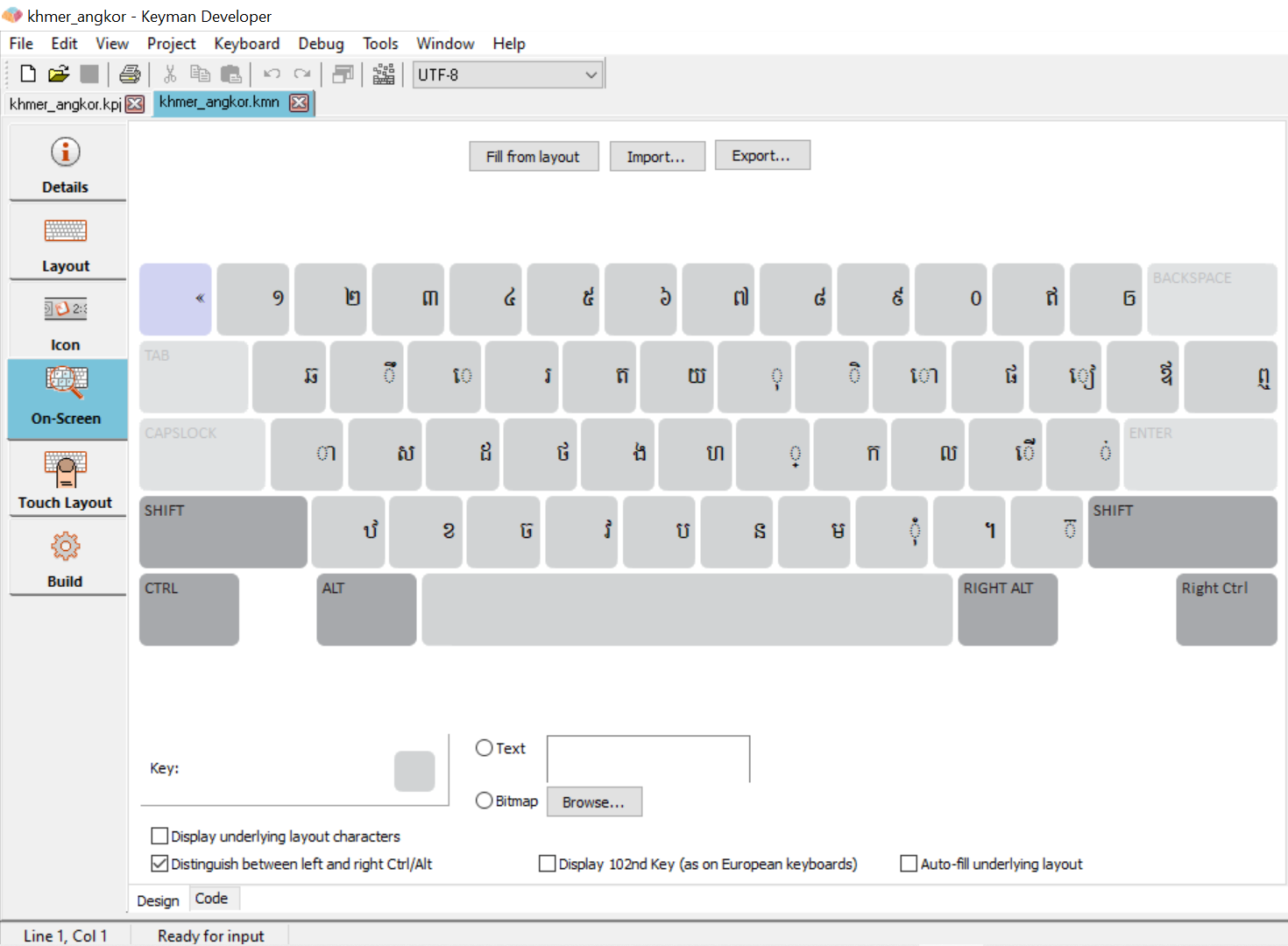

Keyboard Editor - On-Screen tab

This tab allows you to edit the visual representation of your keyboard layout. The content on this tab is stored in the .kvks file associated with your keyboard. The visual representation is used only in desktop and desktop web; however if no touch layout is defined, this layout will be synthesized into a touch layout automatically.

An On-Screen keyboard is optional but in most keyboards is recommended. The On-Screen keyboard may not always match the actual layout identically, because you may choose to hide some of the details of encoding from the interface presented to the user. The user can also choose to print the layout.

This keyboard layout can also be printed or included in HTML or other documentation. The editor allows you to export the file to HTML, PNG or BMP formats.

Fill from layout
Compiles the keyboard file, and processes each possible keystroke in the keyboard file to automatically generate an On-Screen Keyboard that matches the layout. This can be used to effectively pre-populate the On-Screen Keyboard and reduces the complexity of designing it from scratch.
Import
Imports an On-Screen Keyboard from an XML file.
Export
Exports the On-Screen Keyboard to an XML file.
Text
The key cap for the selected key
Bitmap
A bitmap that is displayed on the selected key (not recommended, as it will not scale cleanly)
Display underlying layout characters
If checked, then the base or underlying layout will show in small letters at the top left of each key cap. This can be helpful to provide users with a guide as to the position of each key on the keyboard, especially for non-Latin scripts.
Distinguish between left and right Ctrl/Alt
If checked, treats the left and right Ctrl/Alt as separate layers
Display 102nd Key (as on European keyboards)
European keyboards have one extra key that is not on US keyboards. This key is positioned to the right of the left shift key. Some other keyboards have additional keys; these are not shown on the layout designer. If you have a European layout selected as your Windows layout, the 102nd key will always be visible in the designer; ensure you select this checkbox if you want the 102nd key to always be visible to end users of the layout, irrespective of their selected base layout. When a European layout is selected as your Windows layout, the shape of the Enter key will also change to take two rows, and the backslash key will move down one row, but not otherwise change in behaviour.
Auto-fill underlying layout
When the Fill from layout button is clicked, if this option is checked, then keys without corresponding rules in the Layout will be filled with the base layout character.

Touch Layout tab

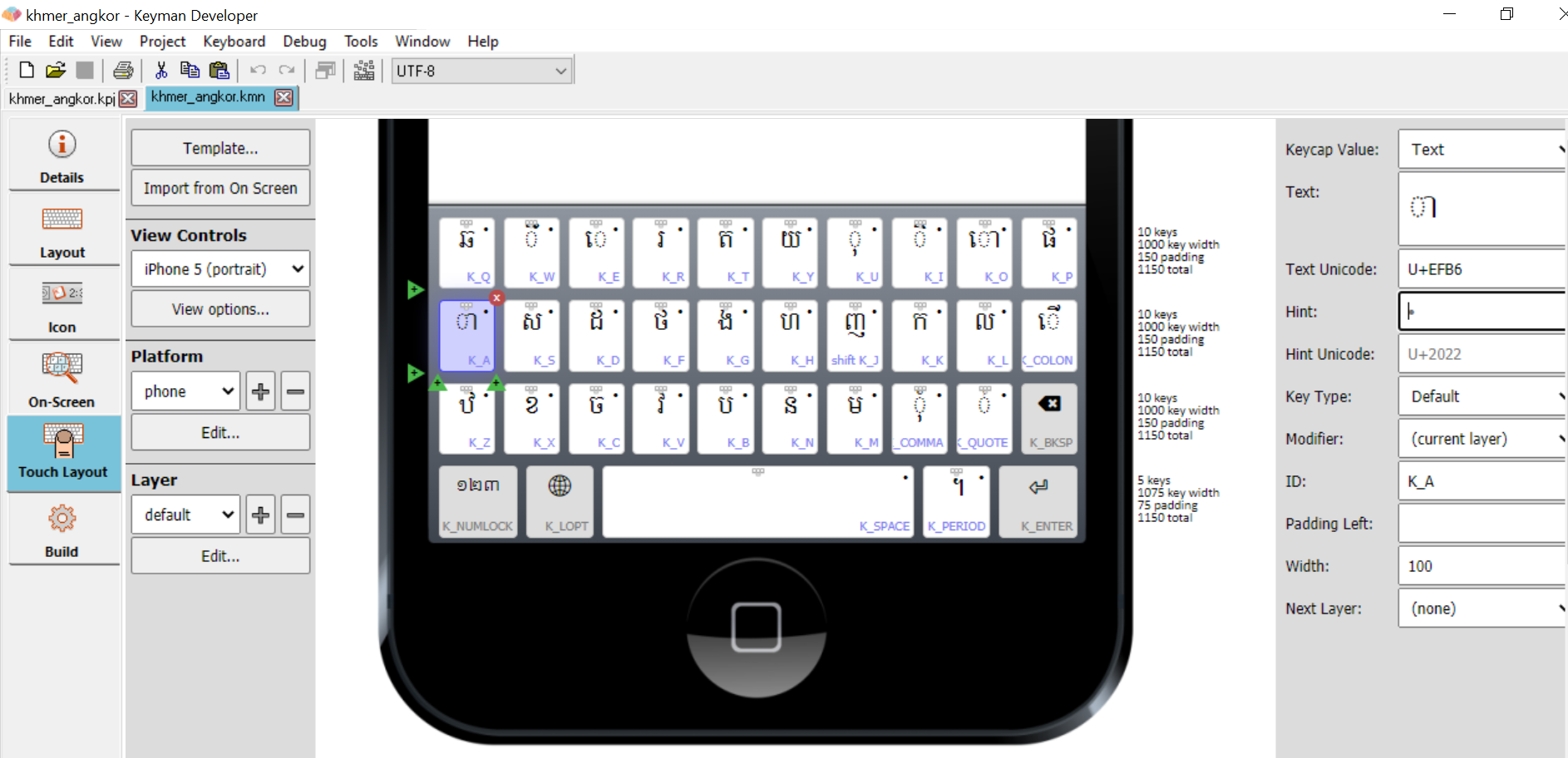

Keyboard Editor - Touch Layout tab, Design view

The Touch Layout tab is used to create the visible representation of the keyboard layout for touch devices. It works similarly to the On Screen Keyboard Editor conceptually, but has a number of additional features specific to touch. Keys on the touch layout trigger rules within the normal Keyman keyboard; if no rule is defined for a given key, it will be given output if it has a standard code beginning with K_, or if it is a Unicode value code, starting with U_.

Follow this guide for learning how to create a Touch Layout keyboard.

In Design view, the editor can show a number of different device types, including iPhone and iPad, in different orientations, to allow you to visualize the keyboard layout before you load it onto a device. The following image shows all aspects of the touch design view.

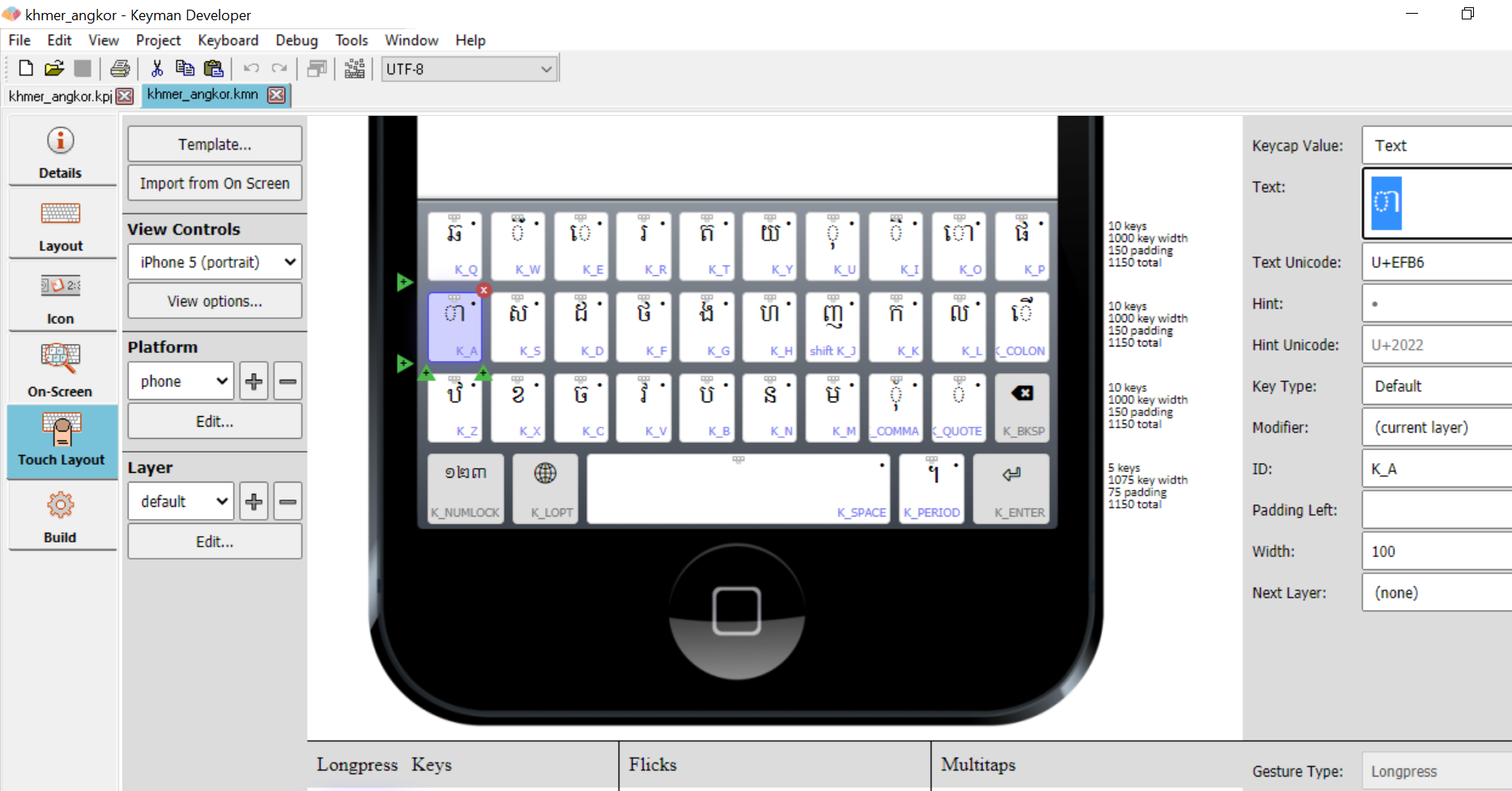

Keyboard Editor - Touch Layout tab, Design view closeup

Left sidebar controls

Template...
The Template button allows you to choose a standard layout of keys from a predefined set. These layouts move the standard set of keys around and between layers to reduce the number of keys on each layer, optimising for mobile phone or other sizes. When Keyman Developer switches to a new template, it will transfer key definitions to the new layout as far as possible, but if keys on the current layout are not in the new template, their definitions will be lost. Therefore, selecting an appropriate template early in the development process is suggested.
Import from On Screen
If you have an existing On-Screen Keyboard for your keyboard layout, importing the design from the On-Screen Keyboard can reduce the development time considerably. Once you have imported, you will probably want to select a new template to transform the desktop-oriented design to a tablet or phone design automatically.
View Controls
This selector allows you to choose the simulated view of the keyboard, either landscape or portrait, for a number of devices. The presented keyboard may not be 100% identical to the final layout as seen on the device, but this allows you to get a feel for the design before testing.
Platform
The platform controls allow you to select and add or remove platform support for a given layout. If a platform is not defined, then Keyman Engine will transform the layout from another platform automatically, so you don't necessarily need to define layouts for each platform. If the 'Display underlying' checkbox is checked, then the base or underlying layout will show in small letters at the top left of each key cap. This can be helpful to provide users with a guide as to the position of each key on the keyboard, especially for non-Latin scripts.
Layer
Each layout for each platform is made up of one or more layers of keys. Each layer can have a default shift state associated with it, which allows keys to trigger specific rules in the Layout code.

Keyboard area

On the right of the sidebar is the keyboard design area. This shows a device with a presentation of the key layout. Within the key layout, you can click on any key to edit it. There are a number of controls:

Red circle with an X
This button to the top right of the key will delete the key from the row; if it is the last key on the row, the entire row will be deleted.
Green arrow with a +
These buttons will insert a key to the left or right, or a single key on a new row above or below the selected key. Adding extra keys scales the entire keyboard.
Dragging the right hand side of the key
Dragging the right hand side of the key will resize the key; resizing the key will rescale the entire keyboard so it still fits within the device screen.
Metrics
The metrics displayed on the right hand side of the keyboard show the virtual width of each row of the keyboard, and the number of keys. For small devices, 10 keys is the maximum recommended number in a row; each key has a standard width of 100. While each row can be a different length, the last key in the row will be stretched to balance the final design; 'spacer' keys can be used to leave a visual gap on the right hand side of the keyboard. You should aim to make each row the same total width for consistent results.

Right sidebar controls

Next to the keyboard area is another control bar for editing details of the selected key.

Keycap Value
Assign a type to a key. This is to specifies which keys are Text, AltGr, Shift, Menu, TabLeft, ZWSp and more.
Text
You can drop characters from Character Map directly into the key cap edit box, or type directly.
Text Unicode
Clicking on a text unicode will focus the unicode edit box instead of the text edit box.
Hint and Hint Unicode
Add any Unicode to indicate the presence of long-press keys for that key, and the hint will be visible in the top right corner of the key.
Key Type

The general appearance of each key is determined by the key type, which is selected (in Keyman Developer 10) from a drop-down list:

Key Type Description
Default (normal) key A standard letter or character key on the keyboard
Special (shift) key The grey control type keys, layer shifts, Enter, Backspace, etc.
Special (Active) A variation on the Special keys, which shows a highlight, typically used to indicate that a shift key for example is down.
Dead-key While this key type has no difference in function to default keys, it will have a different style to indicate that it is different; the logic in the keyboard source may well be a deadkey, for example.
Blank This type of key cannot be selected in use and shows as a blank key.
Spacer Leaves a space in the keyboard at the point it is inserted, in the background colour of the keyboard area.
Modifier
Determines the state that Keyman Engine will receive from the key stroke, such as Default, Right-Alt, Shift, Right-Alt Shift, or Caps. This makes it simpler to design a single keyboard that works across both desktop and mobile interfaces.
ID

Each key must be given an identifying ID which is unique to the key layer. ID by and large correspond to the virtual key codes used when creating a keyboard program for a desktop keyboard, and should start with K_, for keys mapped to standard Keyman virtual key names, e.g. K_HYPHEN, and T_ or U_ for user-defined names, e.g. T_ZZZ.
If keyboard rules exist matching the key code in context, then the output from the key will be determined by the processing of those rules. It is usually best to include explicit rules to manage the output from each key, but if no rules matching the key code are included in the keyboard program, and the key code matches the pattern U_xxxx[_yyyy...] (where xxxx and yyyy are 4 to 6-digit hex strings), then the Unicode characters U+xxxx and U+yyyy will be output. As of Keyman 15, you can use more than one Unicode character value in the id (earlier versions permitted only one). The ID is always required, and a default code will usually be generated automatically by Keyman Developer.

  • K_xxxx is used for a standard Keyman for Windows's key name, e.g. K_W, K_ENTER. You cannot make up your own K_xxxx names. Many of the K_ ids have overloaded output behaviour, for instance, if no rule is matched for K_W, Keyman will output 'w' when it is touched. The standard key names are listed in Virtual Keys and Virtual Character Keys. Typically, you would use only the "common" virtual ID.
  • T_xxxx is used for any user defined names, e.g. T_SCHWA. If you wanted to use it, T_ENTER would also be valid. If no rule matches it, the key will have no output behaviour.
  • U_####[_####] is used as a shortcut for a key that will output those Unicode values, if no rule matches it. This is similar to the overloaded behaviour for K_ ids. Thus #### must be valid Unicode characters. E.g. U_0259 would generate a schwa if no rule matches. It is still valid to have a rule such as + [U_0259] > ...
Padding Left
Padding to the left of each key can be adjusted, and specified as a percentage of the default key width (100). If not specified, a standard padding of 15% of the key width is used between adjacent keys.
Width
The layout is scaled to fit the widest row of keys in the device width, assuming a default key width of 100 units. Keys that are to be wider or narrower than the default width should have width specified as a percentage of the default width. For any key row that is narrower than the widest row, the width of the last key in the row will be automatically increased to align the right hand side of the key with the key with the right edge of the keyboard. However, where this is not wanted, a "spacer" key can be inserted to leave a visible space instead. As shown in the above layouts, where the spacer key appears on the designer screen as a narrow key, but will not be visible in actual use.
Next layer
The virtual keys K_SHIFT, K_CONTROL, K_MENU, etc. are normally used to switch to another key layer, which is implied by the ID. The left and right variants of those ID, and also additional layer-switching keys mentioned above (K_NUMERALS, K_SYMBOLS, K_CURRENCIES, K_ALTGR) can also be used to automatically switch to the appropriate key layer instead of outputting a character. However, it is sometimes useful for a key to output a character first, then switch to a new layer, for example, switching back to the default keyboard layer after a punctuation key on a secondary layer had been used. Specifying the nextlayer for a key allows a different key layer to be selected automatically following the output of the key. Of course, that can be manually overridden by switching to a different layer if preferred.
Drag and drop
Keys can be moved around the keyboard by dragging them with the mouse; a ghost landing box will appear beneath the key when it can be dropped. If the key is dropped in an invalid area, no action will occur.
Double-click
Double clicking on a key with a "Next Layer" defined will switch to that layer.

Middle bar controls

Long-press keys area

The keys in the long press area cannot be resized but the controls otherwise work the same as in the main keyboard area. The keys cannot be dragged between the main keyboard area and the long press area. The bar below the long press area contains the corresponding controls for the long press keys.

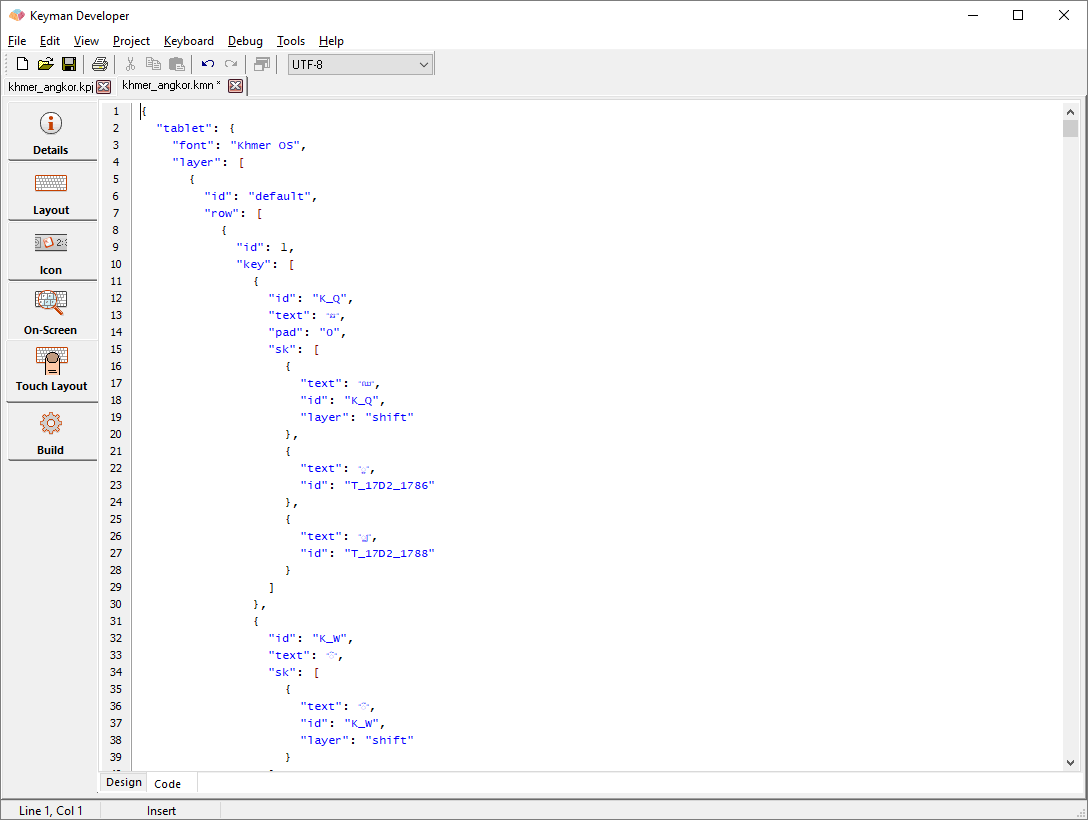

Keyboard Editor - Touch Layout tab, Code view

The Code view allows you to edit the JSON source of the touch layout file. This makes certain operations simpler, such as batched rearranging of keys, or using another text editor to make bulk changes. The Code view uses the standard editor.

The format of the layout file is described in Creating a touch keyboard layout guide.

Long-press, Flicks, and Multitaps controls

Underneath the keyboard area is the Long-press, Flicks, and Multitaps controls.

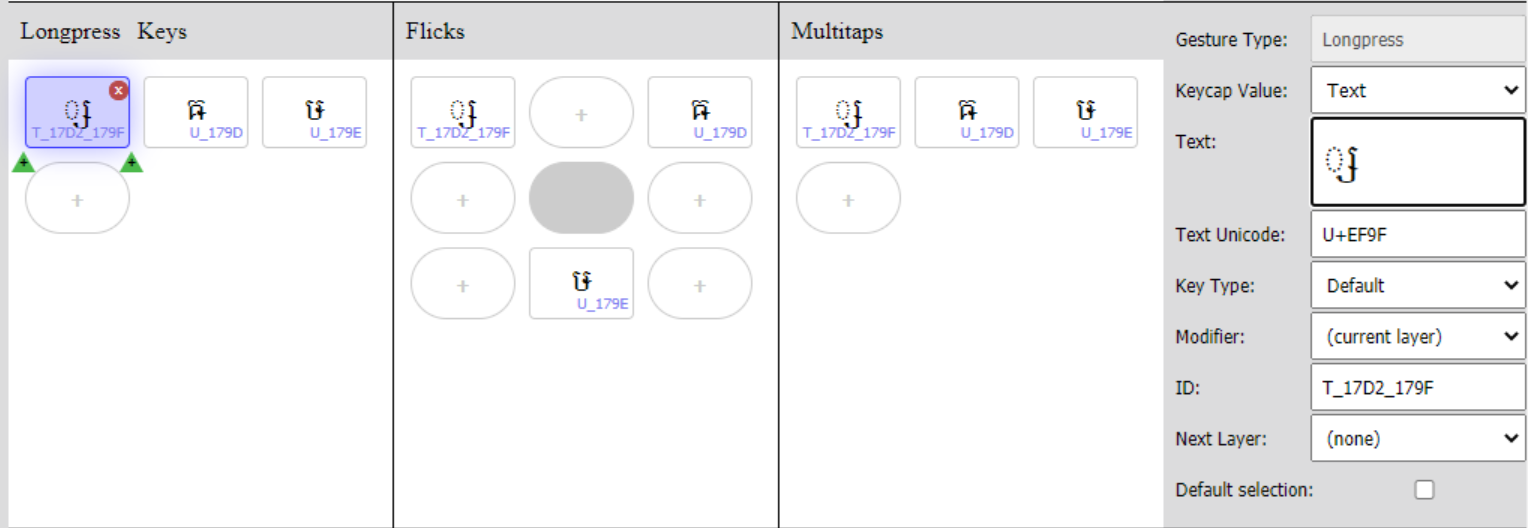

Long-press, Flicks, and Multitaps layout

Red circle with an X
This button to the top right of the key will delete the key from the row; if it is the last key on the row, the entire row will be deleted.
Green arrow with a + (Applies to Long-press and Multitaps)
These buttons will insert a key to the left or right, or a single key on a new row above or below the selected key. Adding extra keys scales the entire keyboard.
Drag and drop (Applies to Long-press and Multitaps)
Keys can be moved around the keyboard by dragging them with the mouse; a ghost landing box will appear beneath the key when it can be dropped. If the key is dropped in an invalid area, no action will occur.

Right sidebar controls

Next to the three controls is another control bar for editing details of the selected key for different Gesture Type. The only difference between this control and the keyboard right sidebar controls is:

  • Include Gesture Type box and Default selection check box.
  • No Hint, Hint Unicode, Padding Left, and Width.

Icon tab

Keyboard Editor - Icon tab

The icon tab allows you to edit the icon associated with the keyboard. An external icon editor will allow you to create more sophisticated icons with alpha transparency and multiple resolutions, but this will cover the standard 16x16 256 colour icon, which is all that many keyboards require. The controls at the top left are:

Pencil
Freehand drawing with the selected colour; use right mouse button for secondary colour.
Line
Draw a straight line
Open box
Draw an outline box
Filled box
Draw a filled box in current colour
Open circle
Draw an outline circle or ellipse
Filled circle
Draw a filled circle or ellipse in the current colour
Fill
Fill from the current point all contiguous pixels of the same colour
Text
Use this tool to add a letter or letters to the icon. Click in the lower left of the icon area and a window opens where you can type the text you want. You can also change the quality of the font as well as the font properties by clicking on the Change button. Note that to change the color of the font, you need to change the color setting in the font properties window.

The icon can be exported or imported to/from various other formats. The transparent colour is the top left colour in the grid with an X in the box. The icon can be rotated in any direction with the arrow controls below the toolbox; this will not lose data from the icon but will instead rotate the edge moving off the grid to the other side of the grid.

Embedded JS tab

This tab allows you to edit JavaScript code in the file referenced by the &kmw_embedjs store, implementing IMX functionality of the keyboard.

Embedded CSS tab

This tab allows you to edit the Cascading Style Sheet rules in the file referenced by the &kmw_embedcss store for the keyboard.

Web Help tab

This tab allows you to add a custom HTML snippet to replace the desktop on screen keyboard, for example useful if the keyboard uses sequences of keys to produce characters.

Include Codes tab

This tab allows you to edit the named constants for the keyboard.

Build tab

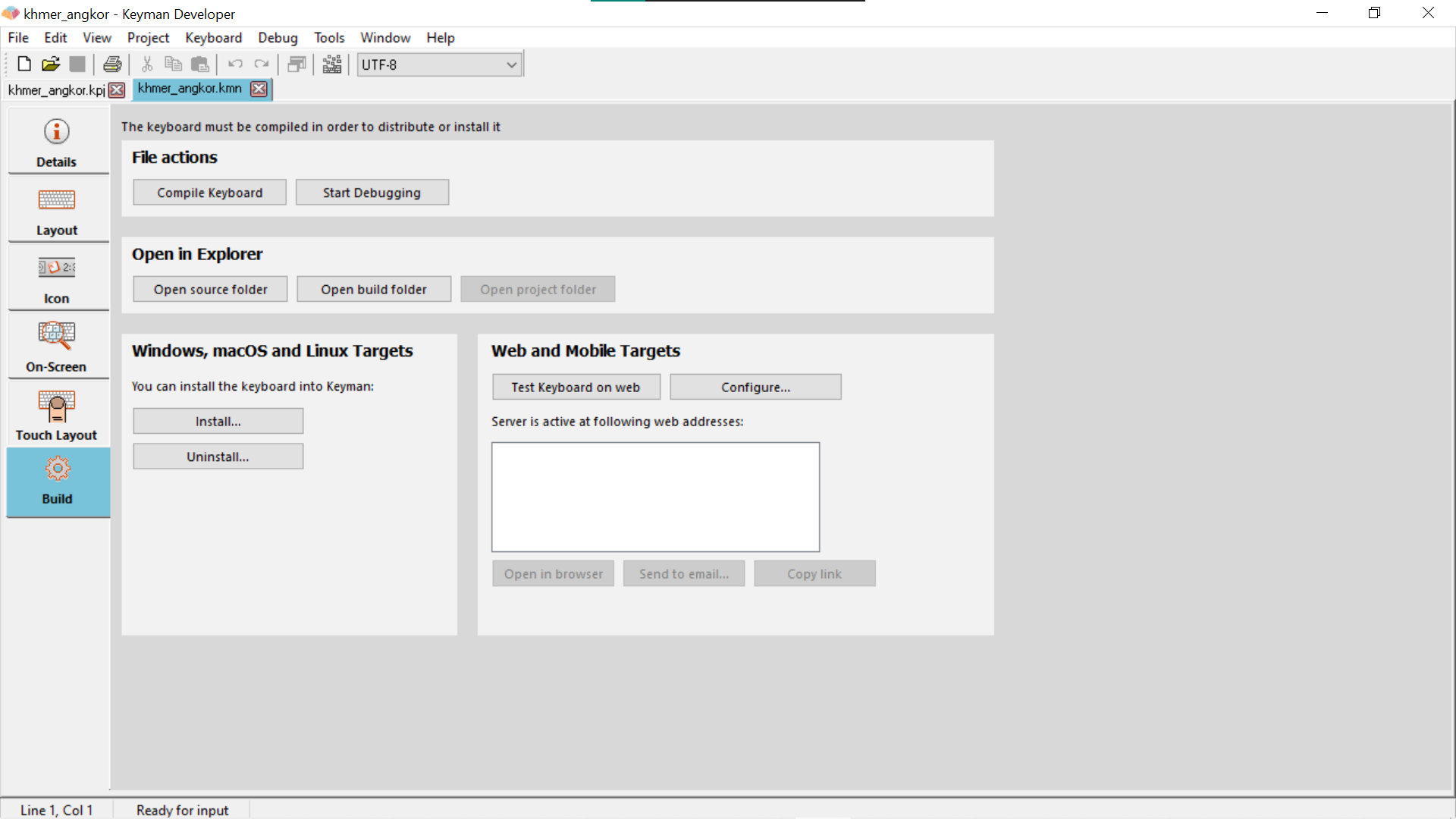

Keyboard Editor - Build tab

A set of common controls is across the top of this tab:

Compile Keyboard
You can compile the keyboard for testing and installation by clicking the Compile button, or selecting Keyboard, Compile Keyboard. This will compile the keyboard for all the selected Targets from the Details tab.
Start Debugging
To test your keyboard within Keyman Developer, press F5 to start the debugger, or press the Start Debugging button. This is suitable for testing desktop layouts.
Open source, build, and project folder
Opens the folder which contains the keyboard source, build, and project files.

Windows, macOS, and Linux Targets

If your keyboard is designed to target Windows and macOS, then the following buttons will also be visible:

Install
Installs the keyboard for use with Keyman Desktop on your computer
Uninstall
Uninstalls the keyboard from Keyman Desktop if previously installed

Web and Mobile Targets

If your keyboard is designed to target KeymanWeb, mobile or tablet devices, the following controls will also be visible:

Test Keyboard on Web
Starts the Keyman Developer Web Server for the current keyboard. This will list the various IP addresses and hostnames that Keyman Developer is listening on
Configure...
Pressing this allows the Options dialog to pop-up.
Open in browser
Starts your default browser with the selected address to allow testing of the keyboard directly
Send to email
Sends the list of web addresses as an email so that you can more easily open the test site on your mobile device, or share with someone else on your network.
Copy link
Once the IP addresses are shown, feel free to copy any one of the links.

To test on other platforms, open one of the debug host addresses listed on your device. Your device will need to be on the same network as the Keyman Developer computer.

You can test within the web browser on your device, or in the native app if you have it installed: just click the Install button on the debugger web page.

The Send to email function makes it easier to open the addresses on your mobile device without having to enter them manually.

Learn more about testing on the web and mobile devices.
